Authentification external

Requirements

To use external Authentification OAuth 2.0, you need a FQDN and a secured web site with https.

Library

abcdesktop uses requests_oauthlib python module.

Requests-OAuthlib uses the Python Requests and OAuthlib libraries for building OAuth2 clients.

authmanagers external:

external authentification use OAuth 2.0 authenticaton.

The external authentification configuration is defined as a dictionary object and contains a list of external provider.

Sample providers entry using the Google OAuth 2.0 authentification service.

'external': {
  'providers': {
    'google': {
        'icon': 'img/auth/google_icon.svg',
        'displayname': 'Google',
        'textcolor': '#000000',
        'backgroundcolor': '#FFFFFF',
        'enabled': True,
        'client_id': 'xxxx',
        'client_secret': 'xxxx',
        'userinfo_auth': True,
        'scope': [ 'https://www.googleapis.com/auth/userinfo.email',  'openid' ],
        'userinfo_url': 'https://www.googleapis.com/oauth2/v1/userinfo',
        'redirect_uri_prefix' : 'https://hostname.domain.local/API/auth/oauth',
        'redirect_uri_querystring': 'manager=external&provider=google',
        'authorization_base_url': 'https://accounts.google.com/o/oauth2/v2/auth',
        'token_url': 'https://oauth2.googleapis.com/token',
        'policies': {
          'acl': { 'permit': [ 'all' ] }
        }
      }
  }}
  • The variable values client_id and client_secret have been set to obfuscate value 'xxxx'.
  • The redirect_uri_prefix contains the FQDN hostname.domain.local. This value is referred to your own server FQDN.

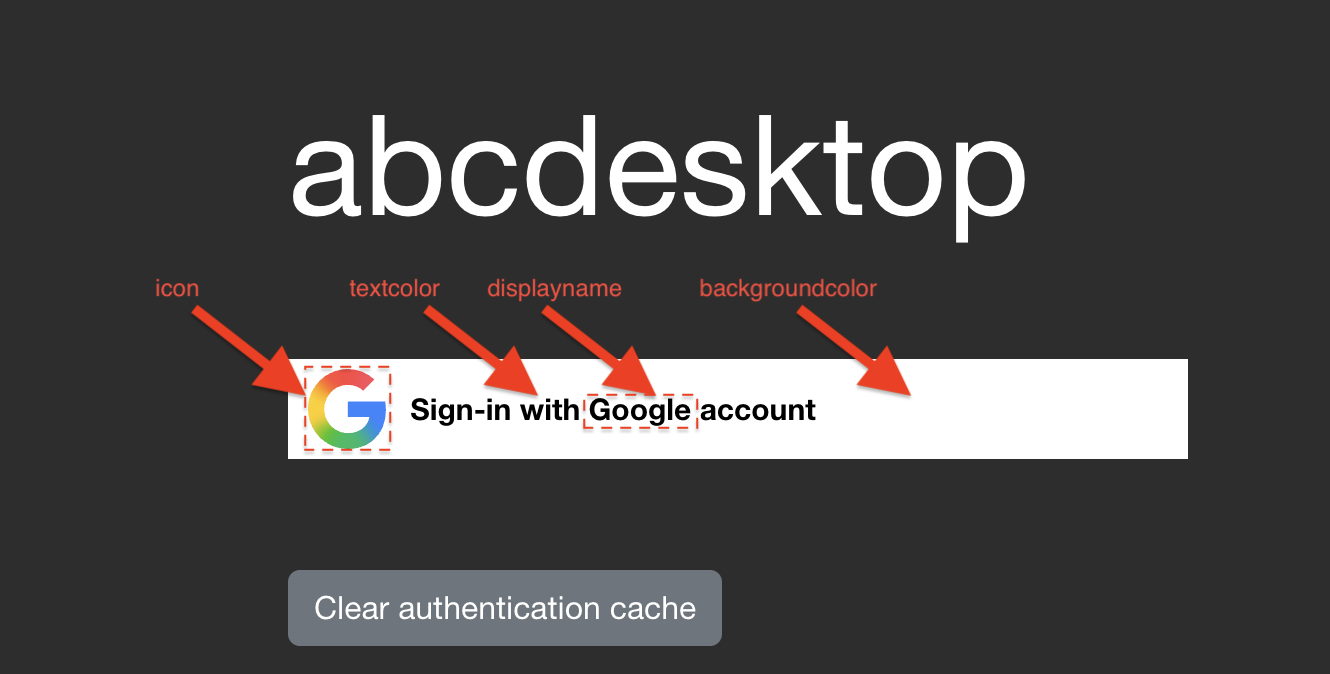

This create on the frontweb the following design :


List of parameters

Variable name Type Description Sample
displayname string Display Name show in Web front Google
icon string File name ogf the icon file. It must be in svg format 'img/auth/google_icon.svg'
textcolor string text color for the front login page '#000000'
backgroundcolor string background color for the front login page '#FFFFFF'
enabled boolean enabled or diabled True
client_id string client id XXX-YYY.apps.googleusercontent.com
client_secret string client secret XXX
scope list of string scope [ 'https://www.googleapis.com/auth/userinfo.email', 'openid' ]
userinfo_auth boolean enable the OAuth userinfo request. The default value is True True
userinfo_url string dialog URL `https://www.googleapis.com/oauth2/v1/userinfo'
redirect_uri_prefix string redirect URL https://hostname.domain.local/API/auth/oauth
redirect_uri_querystring string URL query string manager=external&provider=google
authorization_base_url string callback URL https://accounts.google.com/o/oauth2/v2/auth
token_url string token URL https://oauth2.googleapis.com/token
userinfomap dictionary remap key name to another one { '*': '*', 'picture': 'picture.data.url' }
policies dict policies to allow or denied access, the default value is {} { 'acl' : { 'permit': [ 'all' ] } }
  • The complete redirect url concats the two values redirect_uri_prefix and redirect_uri_querystring.
  • The userinfomap overwites all previous values [ 'userid', 'name' ] and also values to build the posix account [ 'cn', 'uid', 'gid', 'uidNumber', 'gidNumber', 'homeDirectory', 'loginShell', 'description', 'groups', 'gecos'].

Read groups and set roles from userinfo

If userinfo_auth is True abcdesktop tries to read the json content from the userinfo_url request. If the returned a json dictionary gets the groups entry and if the groups is list of string then the roles for the current user are defined with the groups content. All roles are set as labels tags on the user`s pod.

     if isinstance( userinfo.get('groups'), list ):
            for role in userinfo.get('groups'):
                if isinstance(role, str):
                    roles.append(role)

For example the getuserinfo returns a json like

{
    "id": "34567345623452",
    "email": "mail@yourdomain.com",
    "verified_email": true,
    "picture": "https://lh3.googleusercontent.com/x-/xxxxxxxxxxxx",
    "hd": "yourdomain.com",
    "groups": [ "admins", "developers" ]
}

Then the user pods gets the labels

kubectl describe pods user-746b8   -n abcdesktop

The labels list the admins and the developers

Labels:           abcdesktop/role=desktop
                  admins=true
                  developers=true
                  ...

Orange OAuth

Orange's OAuth is supported for authentication. This API is based on OpenID Connect, which combines end-user authentication with OAuth2 authorisation.

Orange Application

Create your Orange Application and set credentials for Orange Authentification API in the section

 'orange': {
        'displayname': 'Orange',
        'icon': 'img/auth/orange_icon.svg',
        'textcolor': '#000000',
        'backgroundcolor': '#FFFFFF',
        'enabled': True,
        'basic_auth': True,
        'userinfo_auth': True,
        'scope' : [ 'openid', 'form_filling' ],
        'client_id': 'xxxx',
        'client_secret': 'xxxx',
        'redirect_uri_prefix' : 'https://hostname.domain.local/API/auth/oauth',
        'redirect_uri_querystring': 'manager=external&provider=orange',
        'authorization_base_url': 'https://api.orange.com/openidconnect/fr/v1/authorize',
        'token_url': 'https://api.orange.com/openidconnect/fr/v1/token',
        'userinfo_url': 'https://api.orange.com/formfilling/fr/v1/userinfo',
        'policies': { 'acl'  : { 'permit': [ 'all' ] } }
      },

Facebook OAuth

Facebook's OAuth is supported for authentication.

Facebook Application

Create your Facebook Application credentials and set the credentials for Facebook Authentification API

'facebook': {
        'displayname': 'Facebook',
        'icon': 'img/auth/facebook_icon.svg',
        'textcolor': '#000000',
        'backgroundcolor': '#FFFFFF',
        'enabled': True,
        'userinfo_auth': True,
        'client_id': 'xxxx',
        'client_secret': 'xxxx',
        'redirect_uri_prefix' : 'https://ocv4.pepins.net/API/auth/oauth',
        'redirect_uri_querystring': 'manager=external&provider=facebook',
        'authorization_base_url': 'https://www.facebook.com/dialog/oauth',
        'userinfo_url': 'https://graph.facebook.com/v2.6/me?fields=picture.width(400),name',
        'token_url': 'https://graph.facebook.com/v2.3/oauth/access_token',
        'userinfomap': {
            '*': '*',
            'picture': 'picture.data.url'
        },
        'policies': { 'acl'  : { 'permit': [ 'all' ] } }
      }

The userinfomap rename the key of the userinfo json document. It translates the key name picture as the new key name picture.data.url.

Google OAuth

Google's OAuth is supported for authentication. The client_id is the google's OAuth client ID, and the client_secret is the OAuth client secret.

Google Application

Create your Google credentials and set the correct credentials for Google Authentification API in the section [gauth]

'google': {
        'icon': 'img/auth/google_icon.svg',
        'displayname': 'Google',
        'textcolor': '#000000',
        'backgroundcolor': '#FFFFFF',
        'enabled': True,
        'client_id': 'xxxx',
        'client_secret': 'xxxx',
        'userinfo_auth': True,
        'scope': [ 'https://www.googleapis.com/auth/userinfo.email',  'openid' ],
        'userinfo_url': 'https://www.googleapis.com/oauth2/v1/userinfo',
        'redirect_uri_prefix' : 'https://hostname.domain.local/API/auth/oauth',
        'redirect_uri_querystring': 'manager=external&provider=google',
        'authorization_base_url': 'https://accounts.google.com/o/oauth2/v2/auth',
        'token_url': 'https://oauth2.googleapis.com/token',
        'policies': {
          'acl': { 'permit': [ 'all' ] }
        }
      }

Github OAuth

GitHub's OAuth implementation supports the standard authorization code grant type and the OAuth 2.0 Device Authorization Grant for apps that don't have access to a web browser.

Github OAuth

Enable other users to authorize your OAuth App. Create your Github credentials here : authorizing-oauth-apps and set the correct credentials for Github Authentification API

'github': {
        'icon': 'img/auth/github_icon.svg',
        'textcolor': '#000000',
        'backgroundcolor': '#FFFFFF',
        'displayname': 'Github',
        'enabled': True,
        'basic_auth': True,
        'userinfo_auth': True,
        'scope' : [ 'read:user' ],
        'client_id': 'xxxx',
        'client_secret': 'xxxx',
        'redirect_uri_prefix' : 'https://hostname.domain.local/API/auth/oauth',
        'redirect_uri_querystring': 'manager=external&provider=github',
        'authorization_base_url': 'https://github.com/login/oauth/authorize',
        'token_url': 'https://github.com/login/oauth/access_token',
        'userinfo_url': 'https://api.github.com/user',
        'policies': { 'acl' : { 'permit': [ 'all' ] } },
        'userinfomap': {  'uidNumber': 'id' }
      }

Keycloak OAuth

Keycloak's OAuth implementation supports the standard authorization code grant type and the OAuth 2.0 Device Authorization Grant for apps that don't have access to a web browser.

Keycloak OAuth

Enable other users to authorize your OAuth App. Create your keycloack credentials and set the correct credentials for keycloak Authentification API

'keycloak': {
      'displayname': 'ABC Keycloak',
      'icon': 'img/auth/keycloak_icon.svg',
      'textcolor': '#000000',
      'backgroundcolor': '#FFFFFF',
      'enabled': True,
      'basic_auth': True,
      'userinfo_auth': True,
      'scope' : [ 'openid', 'roles', 'profile' ],
      'client_id': 'abcdesktop',
      'client_secret': 'xxxx',
      'redirect_uri_prefix' : 'https://hostname.domain.local/API/auth/oauth',
      'redirect_uri_querystring': 'manager=external&provider=keycloak',
      'authorization_base_url': 'https://auth.domain.local/realms/abc/protocol/openid-connect/auth',
      'token_url': 'https://auth.domain.local/realms/abc/protocol/openid-connect/token',
      'userinfo_url': 'https://auth.domain.local/realms/abc/protocol/openid-connect/userinfo',
      'revoke_url': 'https://auth.domain.local/realms/abc/protocol/openid-connect/revoke',
      'policies': { 'acl'  : { 'permit': [ 'all' ] }
    }

Great, you have check how the implicit Authentification configuration works.
