Quick installation core services with a script

Linux operating system is recommanded to run abcdesktop.io.

Linux or macOSWindows

Requirements

kubernetes cluster READY to run
kubectl command-line tool must be configured to communicate with your cluster.
openssl and curl command line must be installed too (only for install using kubectl).

Run the install script

Download and extract the latest release automatically

curl -sL https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/install-4.4.sh |bash

This video show how to install abcdesktop on a fresh READY kubernetes cluster using the bash script

You can read on stdout

show details

[INFO] abcdesktop install script namespace=abcdesktop
[OK] kubectl version
[OK] openssl version
[OK] kubectl create namespace abcdesktop
writing RSA key
writing RSA key
[OK] abcdesktop_jwt_desktop_payload keys created
writing RSA key
[OK] abcdesktop_jwt_desktop_signing keys create
writing RSA key
[OK] abcdesktop_jwt_user_signing keys create
[OK] create secret generic abcdesktopjwtdesktoppayload
[OK] create secret generic abcdesktopjwtdesktopsigning
[OK] create secret generic abcdesktopjwtusersigning
[OK] label secret abcdesktopjwtdesktoppayload
[OK] label secret abcdesktopjwtdesktopsigning
[OK] label secret abcdesktopjwtusersigning
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/abcdesktop-4.4.yaml
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/reference/od.config.4.4
[OK] kubectl create configmap abcdesktop-config --from-file=od.config -n abcdesktop
[OK] label configmap abcdesktop-config abcdesktop/role=pyos.config
role.rbac.authorization.k8s.io/pyos-role created
rolebinding.rbac.authorization.k8s.io/pyos-rbac created
serviceaccount/pyos-serviceaccount created
configmap/configmap-mongodb-scripts created
secret/secret-mongodb created
deployment.apps/mongodb-od created
deployment.apps/memcached-od created
deployment.apps/router-od created
deployment.apps/nginx-od created
deployment.apps/speedtest-od created
deployment.apps/pyos-od created
deployment.apps/console-od created
deployment.apps/openldap-od created
endpoints/desktop created
service/desktop created
service/memcached created
service/mongodb created
service/speedtest created
service/pyos created
service/console created
service/http-router created
service/website created
service/openldap created
[INFO] waiting for deployment/console-od available
[OK] deployment.apps/console-od condition met
[INFO] waiting for deployment/memcached-od available
[OK] deployment.apps/memcached-od condition met
[INFO] waiting for deployment/mongodb-od available
[OK] deployment.apps/mongodb-od condition met
[INFO] waiting for deployment/nginx-od available
[OK] deployment.apps/nginx-od condition met
[INFO] waiting for deployment/openldap-od available
[OK] deployment.apps/openldap-od condition met
[INFO] waiting for deployment/pyos-od available
[OK] deployment.apps/pyos-od condition met
[INFO] waiting for deployment/router-od available
[OK] deployment.apps/router-od condition met
[INFO] waiting for deployment/speedtest-od available
[OK] deployment.apps/speedtest-od condition met
[INFO] list all pods in namespace abcdesktop
NAME                            READY   STATUS    RESTARTS   AGE
console-od-844c749f85-vbbb7     1/1     Running   0          32s
memcached-od-d4b6b6867-tbfgf    1/1     Running   0          33s
mongodb-od-5d996fd57b-tcn45     1/1     Running   0          33s
nginx-od-796c7d7d6b-lgnjb       1/1     Running   0          33s
openldap-od-567dcf7bf6-h2nq9    1/1     Running   0          32s
pyos-od-8d4988b56-vcd7z         1/1     Running   0          32s
router-od-f5458658-b52hj        1/1     Running   0          33s
speedtest-od-7fcc9649b4-qllr7   1/1     Running   0          32s
[INFO] Setup done
[INFO] Checking the service url on http://localhost:30443
[INFO] service status is down
[INFO] Looking for a free TCP port from 30443
[OK] Get a free TCP port from 30443
[INFO] If you're using a cloud provider
[INFO] Forwarding abcdesktop service for you on port=30443
[INFO] For you setup is running the command 'kubectl port-forward nginx-od-796c7d7d6b-lgnjb --address 0.0.0.0 30443:80 -n abcdesktop'
[OK] Port-Forward successful
[OK] Please open your web browser and connect to

[INFO] http://localhost:30443/

The command above downloads the latest release of abcdesktop.io.

The quick installation process runs the commands step by step :

create the abcdesktop namespace
build all rsa keys for jwt signing and payload encryption, using openssl command line
create all service account, services, deployments, secrets and configmaps from the abcdesktop.yaml
download then create the default configuration file od.config

This install process doesn't install applications for your desktop, you get a desktop with few applications in your dock

You can open a web browser and go to the http://localhost:30443/

Change the default namespace

You may need to replace the default namespace abcdesktop by your own during the install process. The install-4.4.sh bash script allow you to set the new namespace as an option.

wget https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/install-4.4.sh
chmod 755 install-4.4.sh

Run install-4.4.sh

./install-4.4.sh --namespace superdesktop

show details

[INFO] abcdesktop install script namespace=superdesktop
[OK] kubectl version
[OK] openssl version
[OK] kubectl create namespace superdesktop
[OK] create secret generic abcdesktopjwtdesktoppayload
[OK] create secret generic abcdesktopjwtdesktopsigning
[OK] create secret generic abcdesktopjwtusersigning
[OK] label secret abcdesktopjwtdesktoppayload
[OK] label secret abcdesktopjwtdesktopsigning
[OK] label secret abcdesktopjwtusersigning
[OK] use local file abcdesktop.yaml
[OK] use local file od.config
[OK] updated abcdesktop.yaml file with new namespace superdesktop
[OK] updated abcdesktop.yaml file with new fqdn superdesktop.svc.cluster.local
[OK] updated od.config file with new namespace superdesktop
[OK] updated od.config file with new fqdn superdesktop.svc.cluster.local
[OK] kubectl create configmap abcdesktop-config --from-file=od.config -n superdesktop
[OK] label configmap abcdesktop-config abcdesktop/role=pyos.config
[OK] default account is created
[OK] role.rbac.authorization.k8s.io/pyos-role created
rolebinding.rbac.authorization.k8s.io/pyos-rbac created
serviceaccount/pyos-serviceaccount created
configmap/configmap-mongodb-scripts created
secret/secret-mongodb created
deployment.apps/mongodb-od created
deployment.apps/memcached-od created
deployment.apps/router-od created
deployment.apps/nginx-od created
deployment.apps/speedtest-od created
deployment.apps/pyos-od created
deployment.apps/console-od created
deployment.apps/openldap-od created
endpoints/desktop created
service/desktop created
service/memcached created
service/mongodb created
service/speedtest created
service/pyos created
service/console created
service/http-router created
service/website created
service/openldap created
[OK] pyos-serviceaccount account is created
[INFO] waiting for deployment/console-od available
[OK] deployment.apps/console-od condition met
[INFO] waiting for deployment/memcached-od available
[OK] deployment.apps/memcached-od condition met
[INFO] waiting for deployment/mongodb-od available
[OK] deployment.apps/mongodb-od condition met
[INFO] waiting for deployment/nginx-od available
[OK] deployment.apps/nginx-od condition met
[INFO] waiting for deployment/openldap-od available
[OK] deployment.apps/openldap-od condition met
[INFO] waiting for deployment/pyos-od available
[OK] deployment.apps/pyos-od condition met
[INFO] waiting for deployment/router-od available
[OK] deployment.apps/router-od condition met
[INFO] waiting for deployment/speedtest-od available
[OK] deployment.apps/speedtest-od condition met
[INFO] waiting for pod/console-od-79bf9bf475-gbb62 Ready
[OK] pod/console-od-79bf9bf475-gbb62 condition met
[INFO] waiting for pod/memcached-od-d4b6b6867-c8b4p Ready
[OK] pod/memcached-od-d4b6b6867-c8b4p condition met
[INFO] waiting for pod/mongodb-od-5d996fd57b-z2pjl Ready
[OK] pod/mongodb-od-5d996fd57b-z2pjl condition met
[INFO] waiting for pod/nginx-od-57dccb8cf9-txgzc Ready
[OK] pod/nginx-od-57dccb8cf9-txgzc condition met
[INFO] waiting for pod/openldap-od-6955699d5-qhjzr Ready
[OK] pod/openldap-od-6955699d5-qhjzr condition met
[INFO] waiting for pod/pyos-od-777747f64b-r87x5 Ready
[OK] pod/pyos-od-777747f64b-r87x5 condition met
[INFO] waiting for pod/router-od-59d67d664f-f56m8 Ready
[OK] pod/router-od-59d67d664f-f56m8 condition met
[INFO] waiting for pod/speedtest-od-67db77f86f-wqkb7 Ready
[OK] pod/speedtest-od-67db77f86f-wqkb7 condition met
[INFO] list all pods in namespace superdesktop
NAME                            READY   STATUS    RESTARTS   AGE
console-od-79bf9bf475-gbb62     1/1     Running   0          12s
memcached-od-d4b6b6867-c8b4p    1/1     Running   0          13s
mongodb-od-5d996fd57b-z2pjl     1/1     Running   0          13s
nginx-od-57dccb8cf9-txgzc       1/1     Running   0          13s
openldap-od-6955699d5-qhjzr     1/1     Running   0          12s
pyos-od-777747f64b-r87x5        1/1     Running   0          13s
router-od-59d67d664f-f56m8      1/1     Running   0          13s
speedtest-od-67db77f86f-wqkb7   1/1     Running   0          13s
[INFO] Setup done
[INFO] Checking the service url on http://localhost:30443

[OK] Please open your web browser and connect to http://localhost:30443/

You can open a web browser and go to the http://localhost:30443/

Requirements

Install and configure Docker Desktop

To run abcdesktop on Microsoft Windows plateform you need to use docker desktop

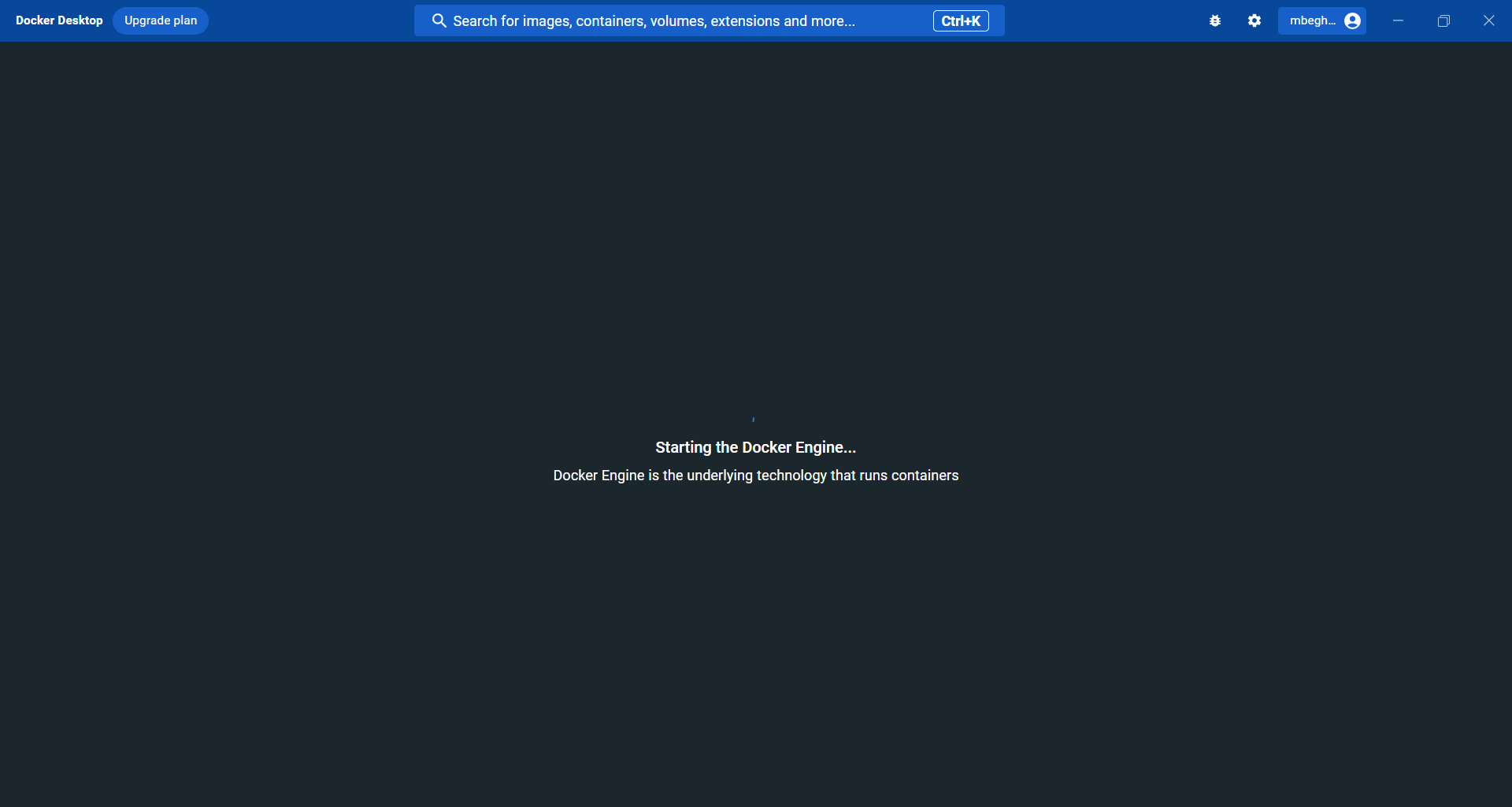

Start Docker Desktop and wait for the docker engine to start.

starting docker desktop

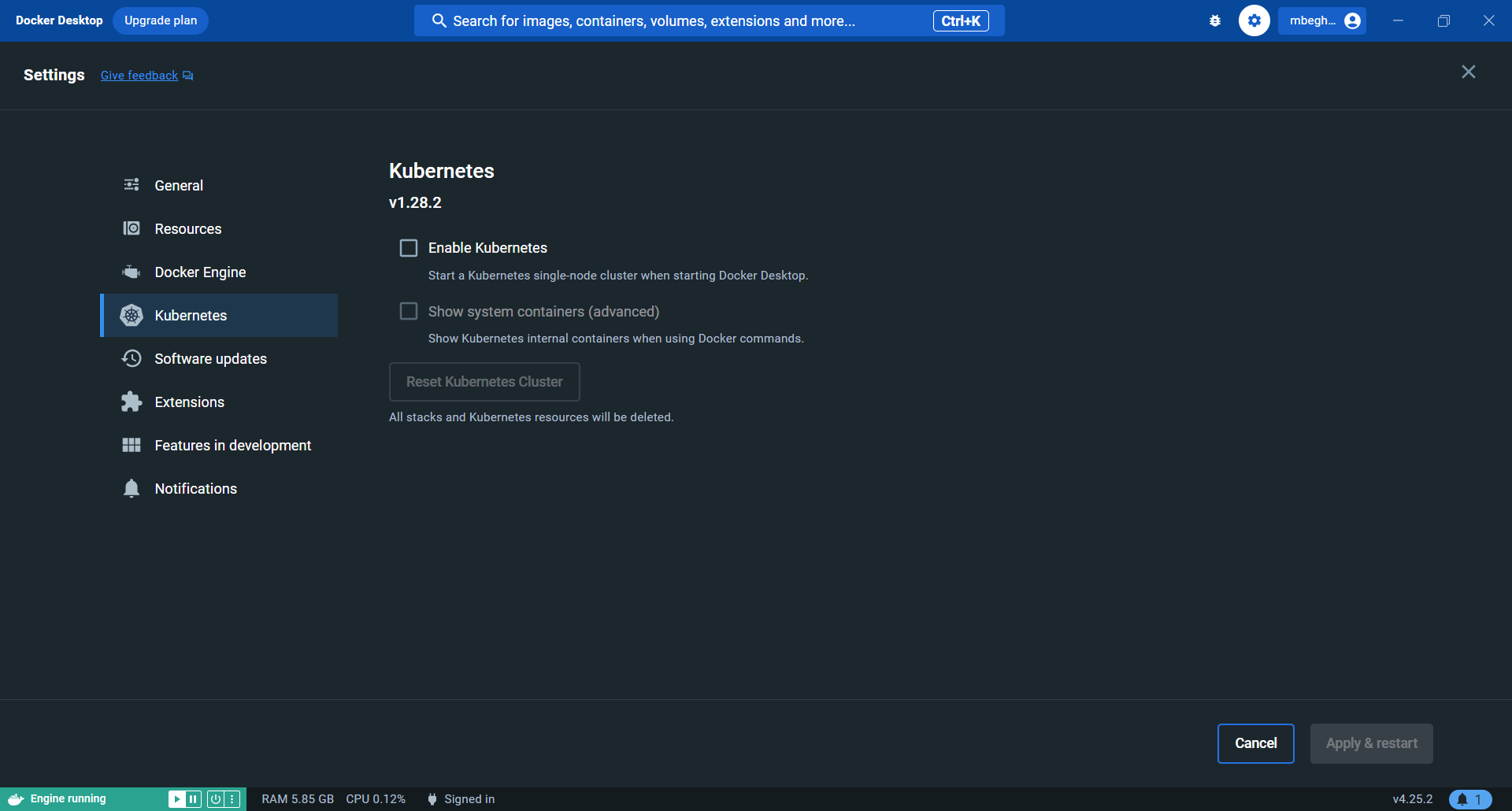

Once started go to the Settings | Kubernetes and click on Enable Kubernetes, starting your cluster may take a while.

enable kubernetes

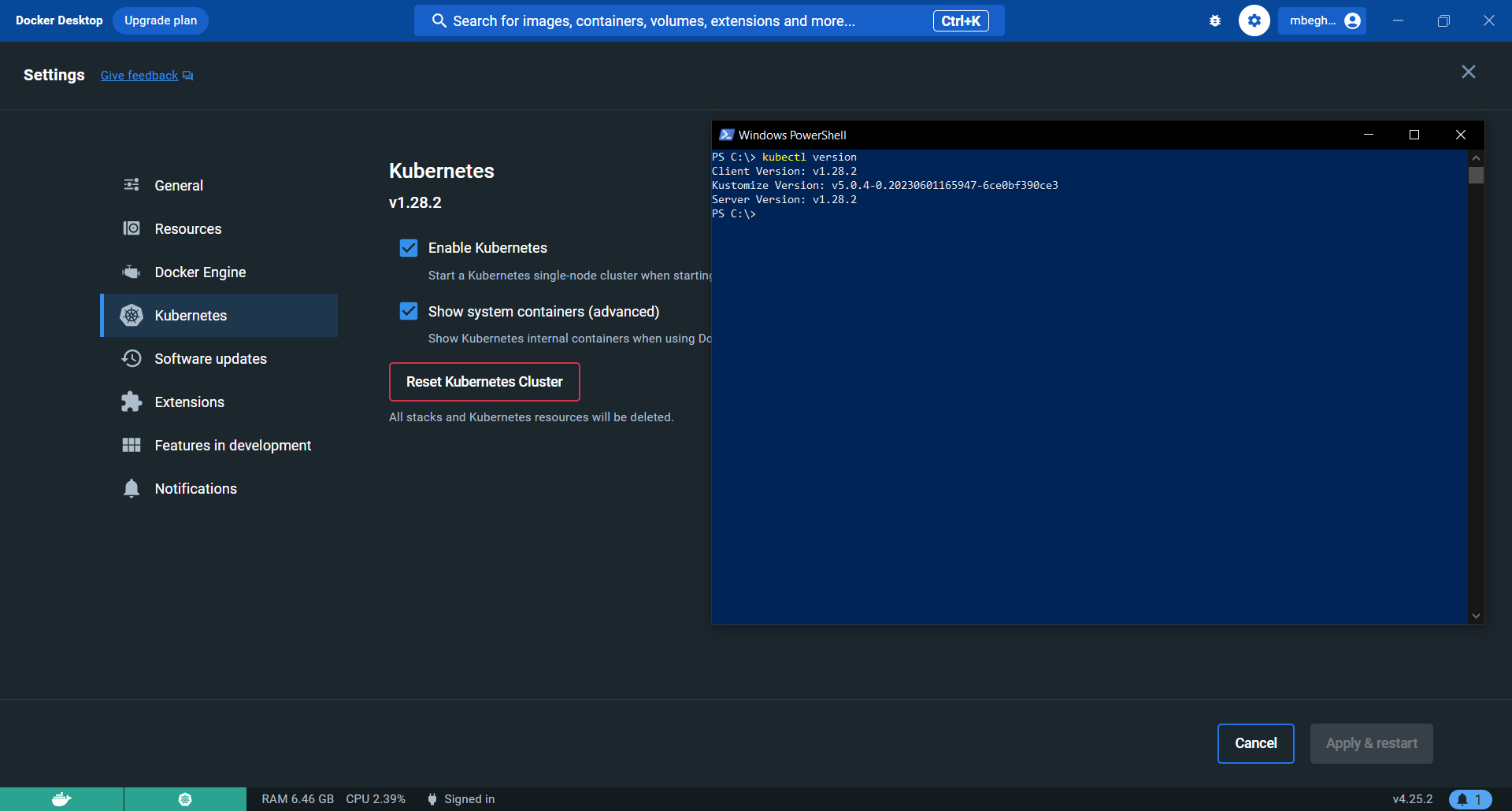

Now your cluster should be correctly initialized, you can check it by opening a new PowerShell and run the command kubectl version

kubectl version
client version: V1.40.4
Kustomise Version: V9-0-4-0.202506011699445602001590025
Server Version: v1.28.2

check kubectl

Install OpenSSL

abcdesktop install process creates RSA keys using openssl, you need to install openssl command line.

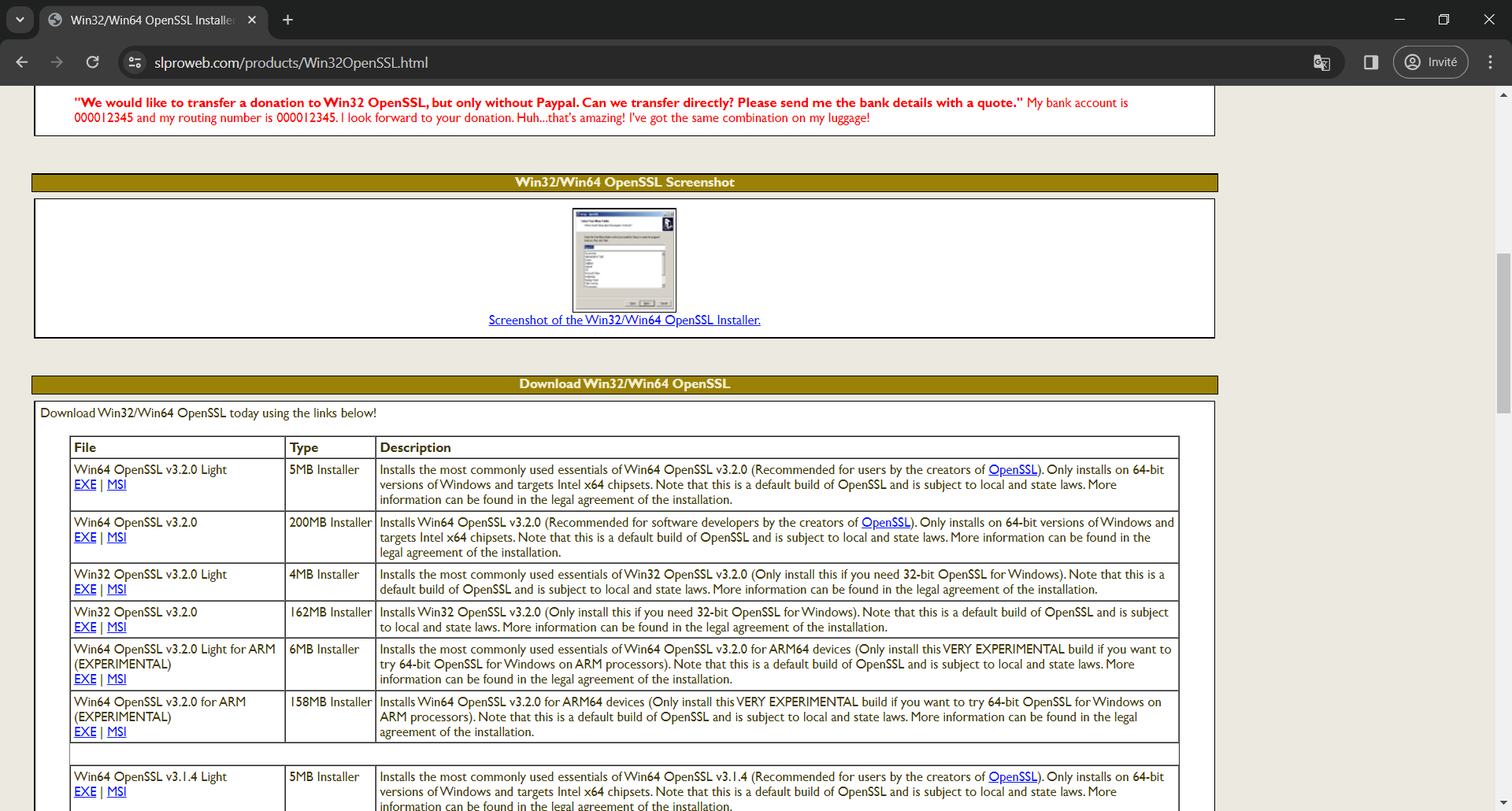

Download the OpenSSL v3.2.0 Light executable file.

dl openssl

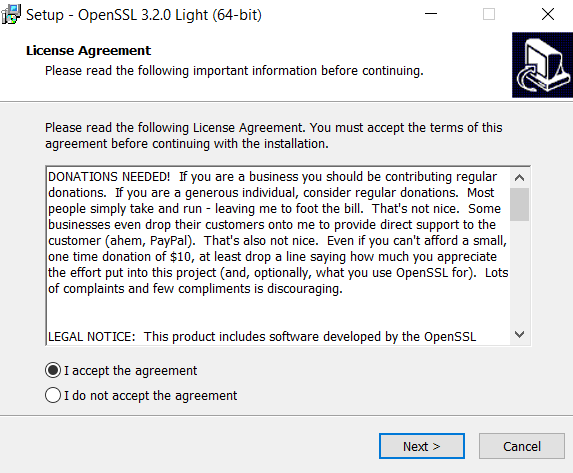

Then follow the install process.

follow install step1

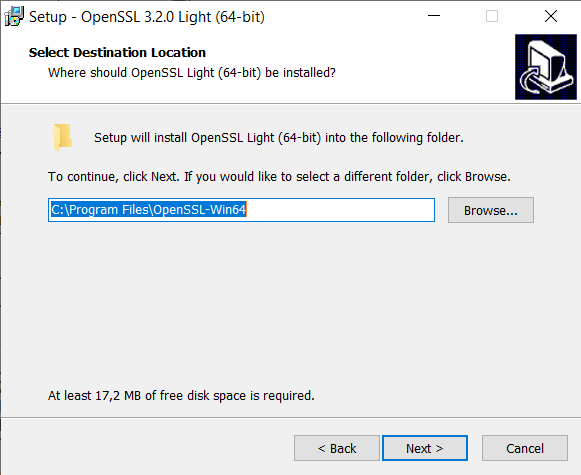

Make sure to keep in mind the path where OpenSSL will be installed.

follow install step2

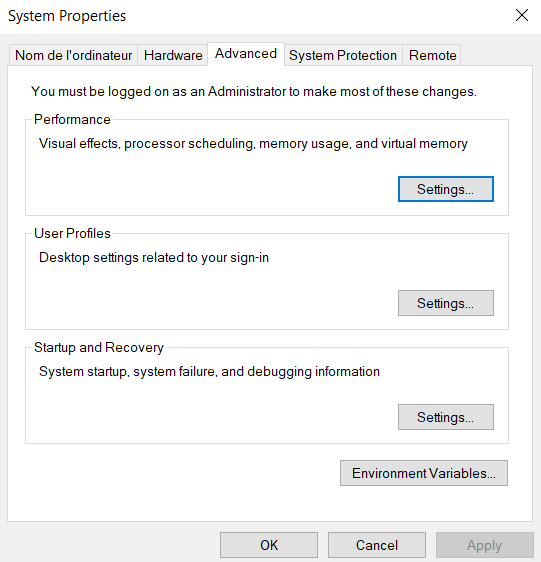

Once installed, go to "Edit the system environement variables", and click on "Environement variables".

go to edit env variables

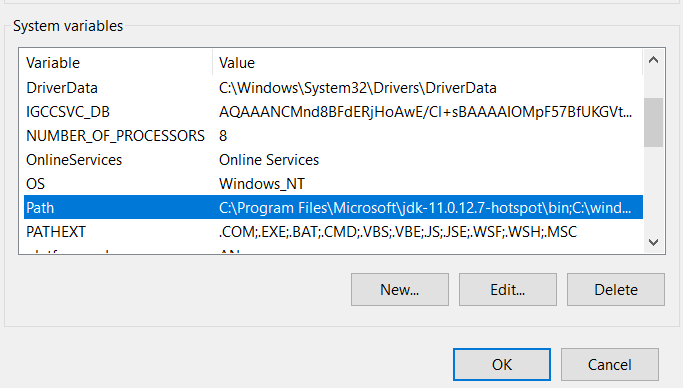

Go to the system variables section and search for Path

system variables

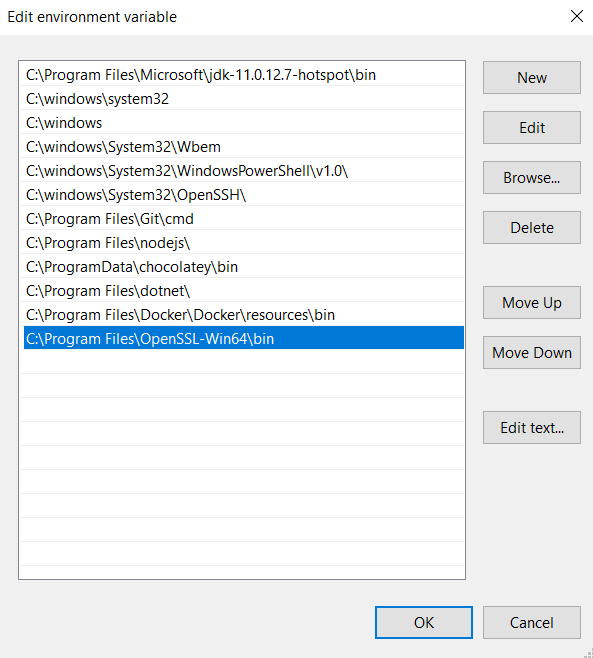

Click on Edit and add a new Path, you have to paste the absolute path to the bin folder of OpenSSL.

add env variable

Now OpenSSL should be correctly installed, you can check it by opening a new PowerShell and run the command

openssl version

check openssl

Run the install script

Download and extract the latest release automatically (Windows):

$script = curl https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/install-4.4.ps1

Invoke-Expression $($script.Content)

You should read on stdout

show details

[INFO] abcdesktop install script namespace=abcdesktop
[OK] kubectl version
[OK] openssl version
[OK] kubectl create namespace abcdesktop
writing RSA key
writing RSA key
[OK] abcdesktop_jwt_desktop_payload keys created
writing RSA key
[OK] abcdesktop_jwt_desktop_signing keys create
writing RSA key
[OK] abcdesktop_jwt_user_signing keys create
[OK] create secret generic abcdesktopjwtdesktoppayload
[OK] create secret generic abcdesktopjwtdesktopsigning
[OK] create secret generic abcdesktopjwtusersigning
[OK] label secret abcdesktopjwtdesktoppayload
[OK] label secret abcdesktopjwtdesktopsigning
[OK] label secret abcdesktopjwtusersigning
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/abcdesktop-4.4.yaml
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/reference/od.config.4.4
[OK] kubectl create configmap abcdesktop-config --from-file=od.config -n abcdesktop
[OK] label configmap abcdesktop-config abcdesktop/role=pyos.config
role.rbac.authorization.k8s.io/pyos-role created
rolebinding.rbac.authorization.k8s.io/pyos-rbac created
serviceaccount/pyos-serviceaccount created
configmap/configmap-mongodb-scripts created
secret/secret-mongodb created                                                                                           deployment.apps/mongodb-od created                                                                                      deployment.apps/memcached-od created                                                                                    deployment.apps/router-od created                                                                                       deployment.apps/nginx-od created
deployment.apps/speedtest-od created
deployment.apps/pyos-od created
deployment.apps/console-od created
deployment.apps/openldap-od created
endpoints/desktop created
service/desktop created
service/memcached created
service/mongodb created
service/speedtest created
service/pyos created
service/console created
service/http-router created
service/website created
service/openldap created
[INFO] waiting for deployment/console-od available
[OK] deployment.apps/console-od condition met
[INFO] waiting for deployment/memcached-od available
[OK] deployment.apps/memcached-od condition met
[INFO] waiting for deployment/mongodb-od available
[OK] deployment.apps/mongodb-od condition met
[INFO] waiting for deployment/nginx-od available
[OK] deployment.apps/nginx-od condition met
[INFO] waiting for deployment/openldap-od available
[OK] deployment.apps/openldap-od condition met
[INFO] waiting for deployment/pyos-od available
[OK] deployment.apps/pyos-od condition met
[INFO] waiting for deployment/router-od available
[OK] deployment.apps/router-od condition met
[INFO] waiting for deployment/speedtest-od available
[OK] deployment.apps/speedtest-od condition met
[INFO] list all pods in namespace abcdesktop
NAME                            READY   STATUS    RESTARTS   AGE
console-od-844c749f85-pghrs     1/1     Running   0          12s
memcached-od-d4b6b6867-wjvmz    1/1     Running   0          12s
mongodb-od-5d996fd57b-2ncll     1/1     Running   0          12s
nginx-od-796c7d7d6b-cxlzt       1/1     Running   0          12s
openldap-od-567dcf7bf6-77zv7    1/1     Running   0          12s
pyos-od-8d4988b56-7bg5z         1/1     Running   0          12s
router-od-f5458658-znwcg        1/1     Running   0          12s
speedtest-od-7fcc9649b4-kxnsn   1/1     Running   0          12s
[INFO] Setup done
[INFO] Checking the service url on http://localhost:30443
[INFO] service status is down
[INFO] Looking for a free TCP port from 30443
[OK] Get a free TCP port from 30443

[INFO] If you're using a cloud provider
[INFO] Forwarding abcdesktop service for you on port=30443
[INFO] For you setup is running the command 'kubectl port-forward nginx-od-796c7d7d6b-cxlzt --address 0.0.0.0 30443:80 -n abcdesktop'
[OK] Port-Forward successful
[OK] Please open your web browser and connect to

[INFO] http://localhost:30443/

You can open a web browser and go to the http://localhost:30443/

Change the default namespace

You may need to replace the default namespace abcdesktop by your own. The install-4.4.ps1 PowerShell script allows you to set the new namespace as an option.

curl https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/install-4.4.ps1 -OutFile install-4.4.ps1

Run install-4.4.ps1

.\install-4.4.ps1 --namespace superdesktop

You should read on stdout

show details

[INFO] abcdesktop install script namespace=superdesktop
[OK] kubectl version
[OK] openssl version
[OK] kubectl create namespace superdesktop
writing RSA key
writing RSA key
[OK] abcdesktop_jwt_desktop_payload keys created
writing RSA key
[OK] abcdesktop_jwt_desktop_signing keys create
writing RSA key
[OK] abcdesktop_jwt_user_signing keys create
[OK] create secret generic abcdesktopjwtdesktoppayload
[OK] create secret generic abcdesktopjwtdesktopsigning
[OK] create secret generic abcdesktopjwtusersigning
[OK] label secret abcdesktopjwtdesktoppayload
[OK] label secret abcdesktopjwtdesktopsigning
[OK] label secret abcdesktopjwtusersigning
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/abcdesktop-4.4.yaml
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/reference/od.config.4.4
[OK] updated abcdesktop.yaml file with new namespace superdesktop
[OK] updated abcdesktop.yaml file with new fqdn superdesktop.svc.cluster.local
[OK] updated od.config file with new namespace superdesktop
[OK] updated od.config file with new fqdn superdesktop.svc.cluster.local
[OK] kubectl create configmap abcdesktop-config --from-file=od.config -n superdesktop
[OK] label configmap abcdesktop-config abcdesktop/role=pyos.config
role.rbac.authorization.k8s.io/pyos-role created
rolebinding.rbac.authorization.k8s.io/pyos-rbac created
serviceaccount/pyos-serviceaccount created
configmap/configmap-mongodb-scripts created
secret/secret-mongodb created                                                                                           deployment.apps/mongodb-od created                                                                                      deployment.apps/memcached-od created                                                                                    deployment.apps/router-od created                                                                                       deployment.apps/nginx-od created
deployment.apps/speedtest-od created
deployment.apps/pyos-od created
deployment.apps/console-od created
deployment.apps/openldap-od created
endpoints/desktop created
service/desktop created
service/memcached created
service/mongodb created
service/speedtest created
service/pyos created
service/console created
service/http-router created
service/website created
service/openldap created
[INFO] waiting for deployment/console-od available
[OK] deployment.apps/console-od condition met
[INFO] waiting for deployment/memcached-od available
[OK] deployment.apps/memcached-od condition met
[INFO] waiting for deployment/mongodb-od available
[OK] deployment.apps/mongodb-od condition met
[INFO] waiting for deployment/nginx-od available
[OK] deployment.apps/nginx-od condition met
[INFO] waiting for deployment/openldap-od available
[OK] deployment.apps/openldap-od condition met
[INFO] waiting for deployment/pyos-od available
[OK] deployment.apps/pyos-od condition met
[INFO] waiting for deployment/router-od available
[OK] deployment.apps/router-od condition met
[INFO] waiting for deployment/speedtest-od available
[OK] deployment.apps/speedtest-od condition met
[INFO] list all pods in namespace superdesktop
NAME                            READY   STATUS    RESTARTS   AGE
console-od-844c749f85-zqbdq     1/1     Running   0          22s
memcached-od-d4b6b6867-wn7r4    1/1     Running   0          22s
mongodb-od-5d996fd57b-xsnkf     1/1     Running   0          22s
nginx-od-57dccb8cf9-z68q9       1/1     Running   0          22s
openldap-od-6955699d5-rl8rd     1/1     Running   0          21s
pyos-od-7f5f8d66b5-q686l        1/1     Running   0          22s
router-od-c9fd4c987-xvcbq       1/1     Running   0          22s
speedtest-od-67db77f86f-6fftb   1/1     Running   0          22s
[INFO] Setup done
[INFO] Checking the service url on http://localhost:30443
[INFO] service status is down
[INFO] Looking for a free TCP port from 30443
[OK] Get a free TCP port from 30443

[INFO] If you're using a cloud provider
[INFO] Forwarding abcdesktop service for you on port=30443
[INFO] For you setup is running the command 'kubectl port-forward nginx-od-57dccb8cf9-z68q9 --address 0.0.0.0 30443:80 -n superdesktop'
[OK] Port-Forward successful
[OK] Please open your web browser and connect to

[INFO] http://localhost:30443/

You can open a web browser and go to the http://localhost:30443/
