Kind

Kind is a tool for running local Kubernetes clusters using Docker container “nodes”. Kind was primarily designed for testing Kubernetes itself, but it can be used to deploy Kubernetes applications as well. To install or setup kind, refer to the Kind documentation

Requirements

kind command line installed
docker Docker Engine installed
kubectl command-line tool must be configured to communicate with your cluster
openssl and curl command line must be installed too (only for install using kubectl)

Create kind cluster

Run the command line to create

kind create cluster --wait 5m

the --wait 5m wait for control-plane = Ready

You should read on stdout:

Creating cluster "kind" ...
 ✓ Ensuring node image (kindest/node:v1.35.0) 🖼
 ✓ Preparing nodes 📦
 ✓ Writing configuration 📜
 ✓ Starting control-plane 🕹️
 ✓ Installing CNI 🔌
 ✓ Installing StorageClass 💾
 ✓ Waiting ≤ 5m0s for control-plane = Ready ⏳
 • Ready after 24s 💚
Set kubectl context to "kind-kind"
You can now use your cluster with:

kubectl cluster-info --context kind-kind

Thanks for using kind! 😊

Run the install bash script

curl -sL https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/install-4.4.sh |bash

show details

[INFO] abcdesktop install script namespace=abcdesktop
[OK] kubectl version
[OK] openssl version
[OK] kubectl create namespace abcdesktop
writing RSA key
writing RSA key
[OK] abcdesktop_jwt_desktop_payload keys create
writing RSA key
[OK] abcdesktop_jwt_desktop_signing keys create
writing RSA key
[OK] abcdesktop_jwt_user_signing keys create
[OK] create secret generic abcdesktopjwtdesktoppayload
[OK] create secret generic abcdesktopjwtdesktopsigning
[OK] create secret generic abcdesktopjwtusersigning
[OK] label secret abcdesktopjwtdesktoppayload
[OK] label secret abcdesktopjwtdesktopsigning
[OK] label secret abcdesktopjwtusersigning
[OK] mongod key file create
######################################################################## 100.0%
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/kubernetes/abcdesktop-4.4.yaml
######################################################################## 100.0%
[OK] downloaded source https://raw.githubusercontent.com/abcdesktopio/conf/main/reference/od.config.4.4
[OK] kubectl create configmap abcdesktop-config --from-file=od.config -n abcdesktop
[OK] label configmap abcdesktop-config abcdesktop/role=pyos.config
[OK] default account is created
[OK] role.rbac.authorization.k8s.io/pyos-role created
rolebinding.rbac.authorization.k8s.io/pyos-rbac created
serviceaccount/pyos-serviceaccount created
configmap/version-config created
configmap/configmap-mongodb-scripts created
secret/secret-mongodb created
configmap/abcdesktop-passwd-templatefile created
configmap/abcdesktop-group-templatefile created
configmap/abcdesktop-shadow-templatefile created
configmap/abcdesktop-gshadow-templatefile created
statefulset.apps/mongodb-od created
deployment.apps/memcached-od created
deployment.apps/router-od created
deployment.apps/nginx-od created
deployment.apps/speedtest-od created
deployment.apps/pyos-od created
deployment.apps/console-od created
deployment.apps/openldap-od created
service/desktop created
service/memcached created
service/mongodb created
service/speedtest created
service/pyos created
service/console created
service/http-router created
service/website created
service/openldap created
[OK] pyos-serviceaccount account is created
[INFO] waiting for deployment/console-od available
[OK] deployment.apps/console-od condition met
[INFO] waiting for deployment/memcached-od available
[OK] deployment.apps/memcached-od condition met
[INFO] waiting for deployment/nginx-od available
[OK] deployment.apps/nginx-od condition met
[INFO] waiting for deployment/openldap-od available
[OK] deployment.apps/openldap-od condition met
[INFO] waiting for deployment/pyos-od available
[OK] deployment.apps/pyos-od condition met
[INFO] waiting for deployment/router-od available
[OK] deployment.apps/router-od condition met
[INFO] waiting for deployment/speedtest-od available
[OK] deployment.apps/speedtest-od condition met
[INFO] waiting for pod/console-od-7789497dcf-d24rb Ready
[OK] pod/console-od-7789497dcf-d24rb condition met
[INFO] waiting for pod/memcached-od-54cdf9d684-rsqkg Ready
[OK] pod/memcached-od-54cdf9d684-rsqkg condition met
[INFO] waiting for pod/mongodb-od-0 Ready
[OK] pod/mongodb-od-0 condition met
[INFO] waiting for pod/nginx-od-6bf5fd7c7-54k7p Ready
[OK] pod/nginx-od-6bf5fd7c7-54k7p condition met
[INFO] waiting for pod/openldap-od-5c4646dc7f-bjsh9 Ready
[OK] pod/openldap-od-5c4646dc7f-bjsh9 condition met
[INFO] waiting for pod/pyos-od-6f88895f4d-g4cdm Ready
[OK] pod/pyos-od-6f88895f4d-g4cdm condition met
[INFO] waiting for pod/router-od-647b77455d-nk677 Ready
[OK] pod/router-od-647b77455d-nk677 condition met
[INFO] waiting for pod/speedtest-od-7d7c95d754-dmt5j Ready
[OK] pod/speedtest-od-7d7c95d754-dmt5j condition met
[INFO] list all pods in namespace abcdesktop
NAME                            READY   STATUS    RESTARTS   AGE
console-od-7789497dcf-d24rb     1/1     Running   0          4m38s
memcached-od-54cdf9d684-rsqkg   1/1     Running   0          4m38s
mongodb-od-0                    2/2     Running   0          4m38s
nginx-od-6bf5fd7c7-54k7p        1/1     Running   0          4m38s
openldap-od-5c4646dc7f-bjsh9    1/1     Running   0          4m38s
pyos-od-6f88895f4d-g4cdm        1/1     Running   0          4m38s
router-od-647b77455d-nk677      1/1     Running   0          4m38s
speedtest-od-7d7c95d754-dmt5j   1/1     Running   0          4m38s
[INFO] Setup done
[INFO] Checking the service url on http://localhost:30443
[INFO] service status is down
[INFO] Looking for a free tcp port from 30443
[OK] get a free tcp port from 30443

[INFO] If you're using a cloud provider
[INFO] Forwarding abcdesktop service for you on port=30443
[INFO] For you setup is running the command 'kubectl port-forward router-od-647b77455d-nk677 --address 0.0.0.0 30443:80 -n abcdesktop'
[OK] Please open your web browser and connect to

[INFO] http://192.168.7.119:30443/

How to connect ?

The install bash script forward the tcp port 30443 to the router pod port tcp 80

kubectl port-forward router-od-647b77455d-nk677 --address 0.0.0.0 30443:80 -n abcdesktop

[OK] Please open your web browser and connect to

[INFO] http://192.168.7.119:30443/

Open the URL returnes by the install bash script. In this sample http://192.168.7.119:30443/

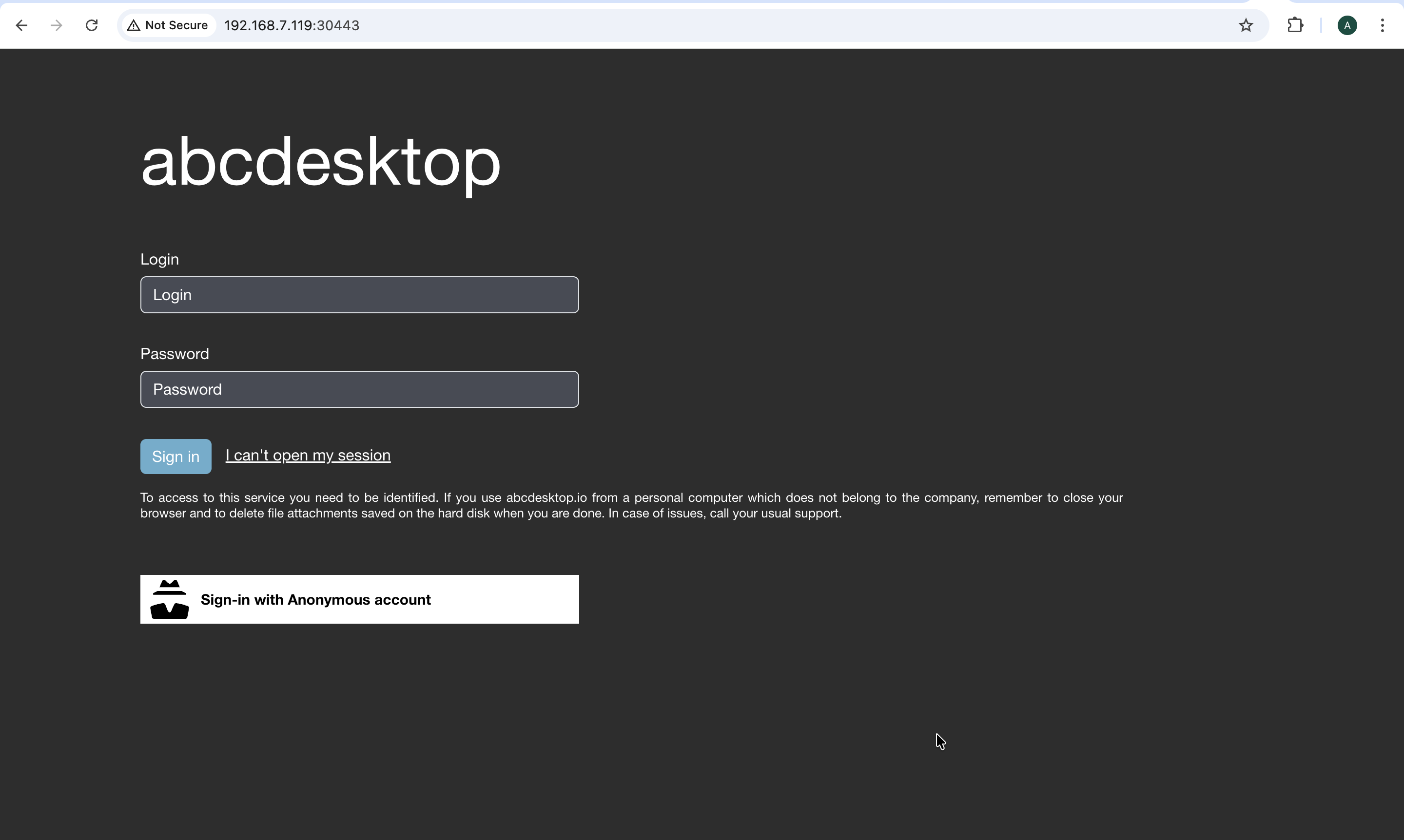

kind home page

Your web browser shows the abcdesktop service home page

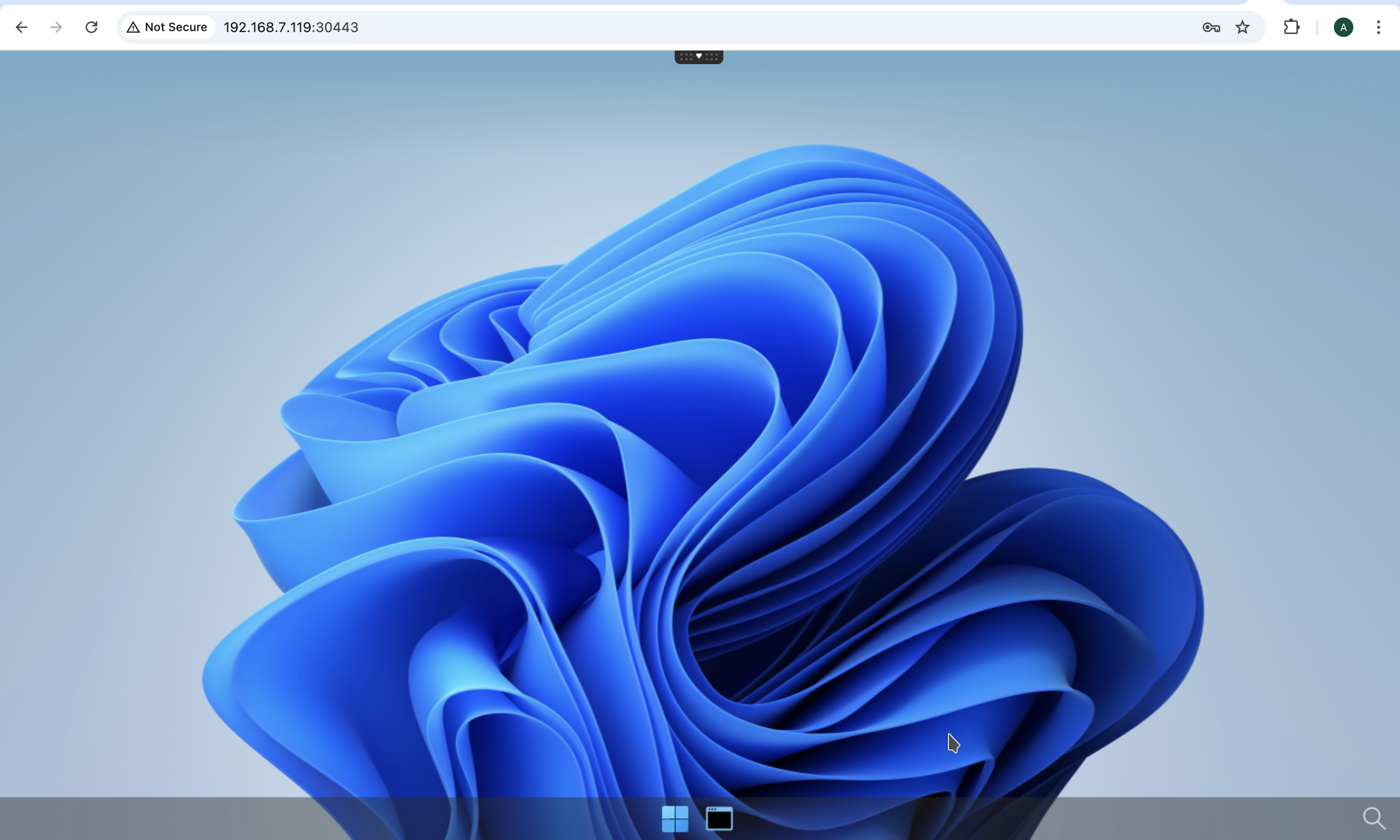

kind user connected

The user Philip J. Fry is connected to the abcdesktop service

Open the URL returnes by the install bash script. In this sample http://192.168.7.119:30443/

Great you have installed abcdesktop using kind and your web browser shows the abcdesktop service.

Delete cluster

To uninstall, run the kind delete cluster command line:

kind delete cluster
